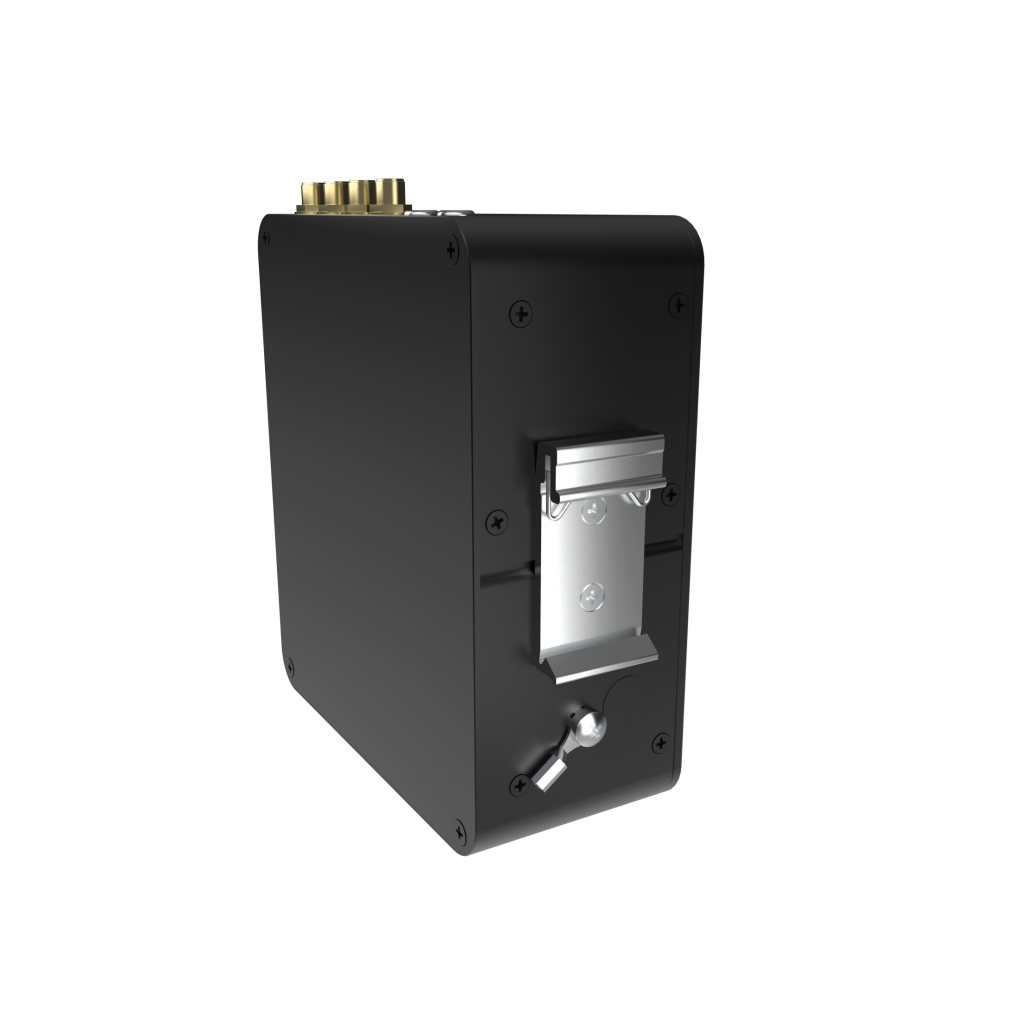

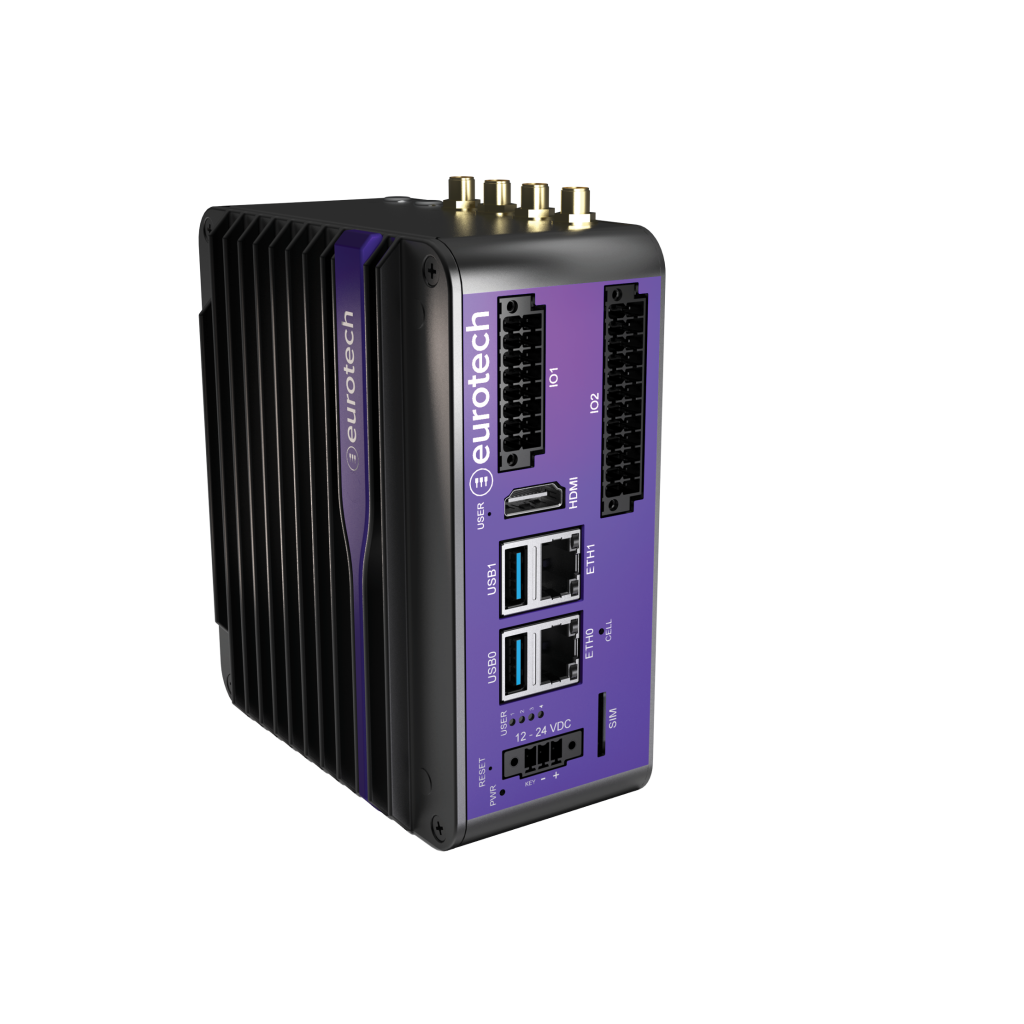

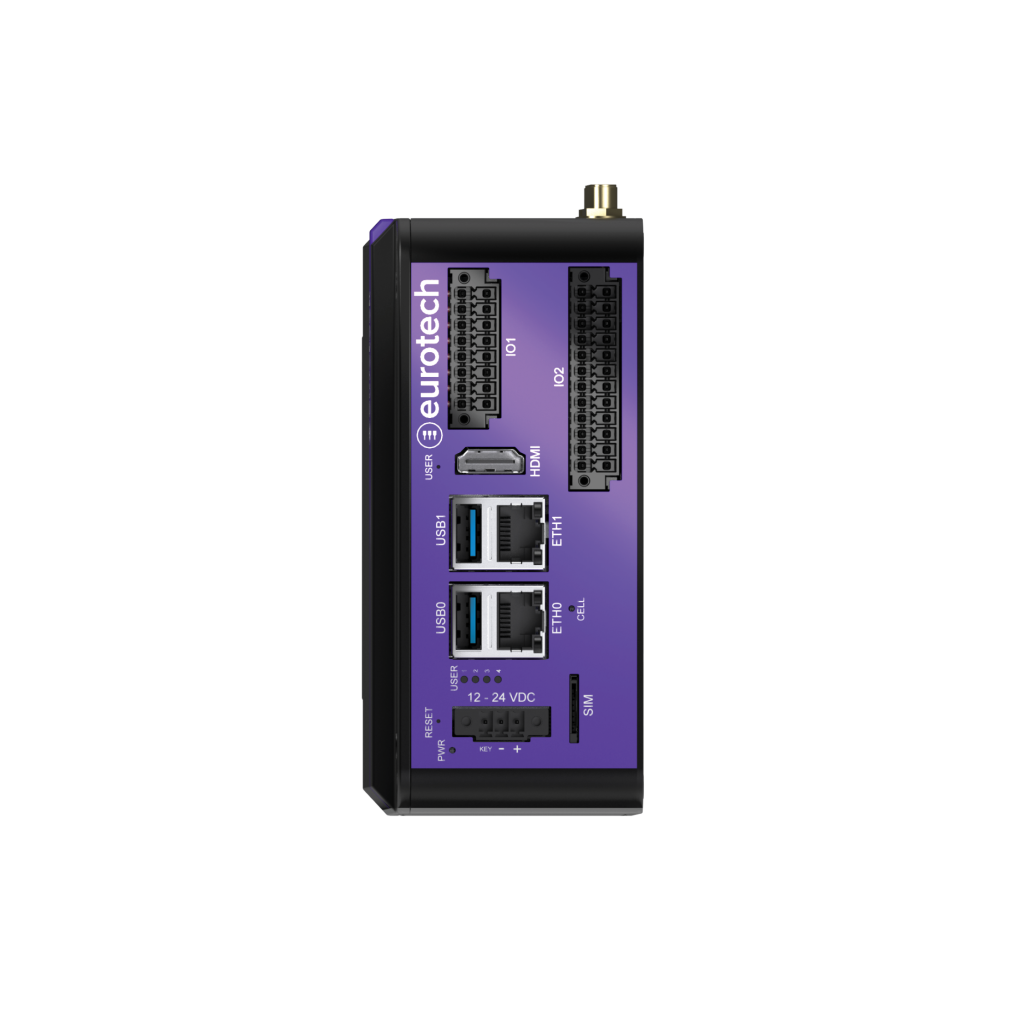

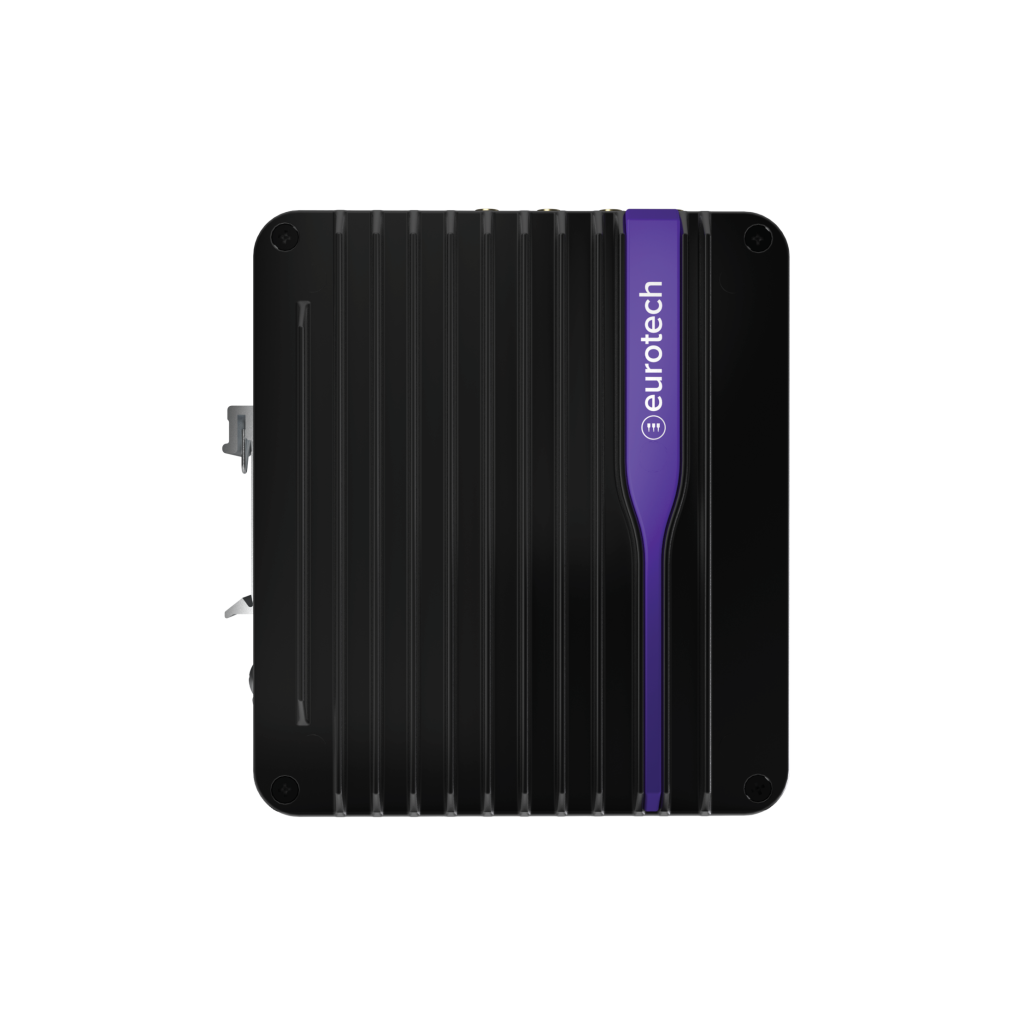

ReliaGATE 15A-14

Modular ReliaGATE 15A-14 IoT Gateway, NXP i.MX 8M QuadLite, LTE Cat 4 Global, IEC 62443-4-2 SL2

The ReliaGATE 15A-14 is purpose-built for industrial environments with its powerful processing ARM Quad-Core CPU and the ability to seamlessly connect to global networks and 5G Ready

Key Features:

• Modular Gateway, with a wide range of configuration options
• i.MX 8M Plus QuadLite Quad Core Cortex-A53 1.6 GHz
• Onboard 4GB LPDDR4 RAM, 32GB eMMC
• Up to 2x 1GbE, 2x USB 3.1, 2x RS-232/422/485, 2x CAN-FD, 6x Digital IN, 5x Digital OUT, 4x Analogue IN and 1x HDMI
• Wi-Fi/BT, Carrier certified LTE/4G and GNSS; 5G Ready
• Pre-certified US Carriers: PTCRB, Verizon and AT&T
• Wide Power Input: 9-30VDC, Ignition Key Sense
• Wide Temperature: -25 to +70°C
• Cybersecurity certified: ISA/IEC 62443-4-1/-4-2 SL2, PSA Level 1, PSA Level 1, Secure Boot, TPM 2.0 and Antitamper Monitor
• Everyware Software Framework (ESF), Eveyware GreenEdge (EGE) and Software Hardening


Datasheet ReliaGATE 15A-14
